How to export data

From the Project screen in Data Engine, tap Map to access the map screen.

• Zoom the map to the area you want to export
• Click "Map Output"
• Choose the output you want
  • Print Map
    • Outputs an image of the existing map
  • Download as KML
    • Output a KML file with all the information

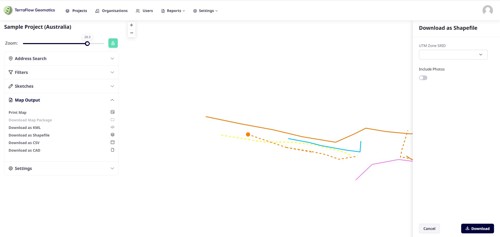

  • Download as Shapefile
    • Outputs a set of shapefiles, one per asset type
    • Can be reprojected from WGS84 during output
      • Note Height and Elevation data will not be touched
    • Include photo's zips the photo's associated with the data being exported
  • Download as CSV
    • Outputs a CSV file containing all of the data to be exported
    • Can be reprojected from WGS84 during output
      • Note Height and Elevation data will not be touched
    • Include photo's zips the photo's associated with the data being exported
  • Download as CAD
    • Outputs a DXF file containing all of the data to be exported
    • Can be reprojected from WGS84 during output
      • Note Height and Elevation data will not be touched
    • Include photo's zips the photo's associated with the data being exported
